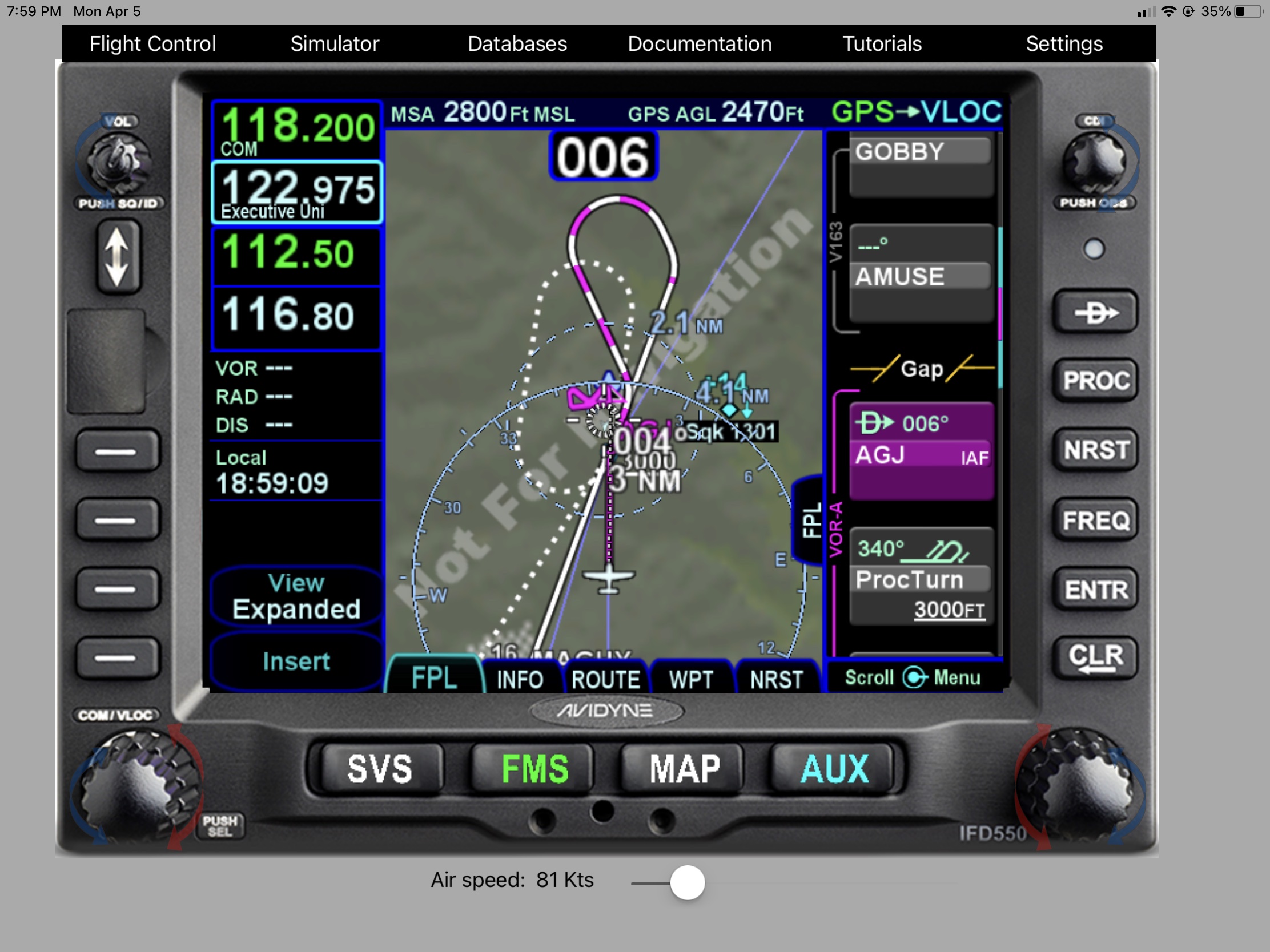

Today I was flying the VOR-A into KLZZ.  I had been cleared for the VOR-A approach and was flying from AMUSE to AGJ when approach then cancelled my clearance and told me to hold at AGJ.

I tried putting in AGJ between AMUSE and AGJ (before the gap) but it wouldn't accept that (I assume because AGJ was my next fix already) and so then I tried putting in a hold after AGJ but I couldn't do that, maybe because it is part of a procedure.  How then should this be done?  I ended up scrolling up on the FPL page and putting AGJ right after my origin and then placing a hold there.  Is there a better way to do this?

Back to Top
dmtidler View Drop Down
Senior Member
Senior Member
Avatar

Joined: 12 Feb 2016
Location: USA
Status: Offline
Points: 364
Post Options Post Options   Thanks (0) Thanks(0)   Quote dmtidler Quote  Post ReplyReply Direct Link To This Post Posted: 05 Apr 2021 at 10:19pm
Holds cannot be inserted on an approach procedure at and beyond the FAF and in this case, the IAF as it is the basis for the procedure turn. In this particular example, you may use the missed approach hold over the AGJ VOR to comply with your ATC clearance; however, the IFD will not permit a direct-to any point in the missed approach including the missed approach instance of AGJ until the missed approach is activated (either manually or automatically).

If Auto Enable Missed is "On" for the current user, activate the leg to MAGHY (the leg after the FAF), then perform a direct-to the missed approach instance of AGJ. The hold can be modified if the holding instructions are different than the pre-loaded missed approach hold.

If Auto Enable Missed is "Off" for the current user, activate the leg to MAGHY (the leg after the FAF), then activate Enable Missed at LSK 4, then perform a direct-to the missed approach instance of AGJ. As above, the hold can be modified if the holding instructions are different than the pre-loaded missed approach hold.

BTW - if the missed approach hold is modified, it will need to be corrected back to match the published missed approach when the loaded approach is initiated or a reload of the approach procedure at the appropriate time will also reset the missed approach hold.
